UPS Lithium Battery UPS Manufacturer OEM Lithium Iron Phosphate Battery 76.8Wh Offline UPS 600VA
Overview
Quick Details
Warranty: 1year
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Model Number: OKUPS600VA
Phase: Single Phase
Protection: Overvoltage
Weight: 3.7kg
Type: STANDBY
Application: COMPUTER
Product name: Lithium UPS 600va
transfer time: 4-8ms
Wave Form: Modified Sine Wave
Capacity: 60% of rated power

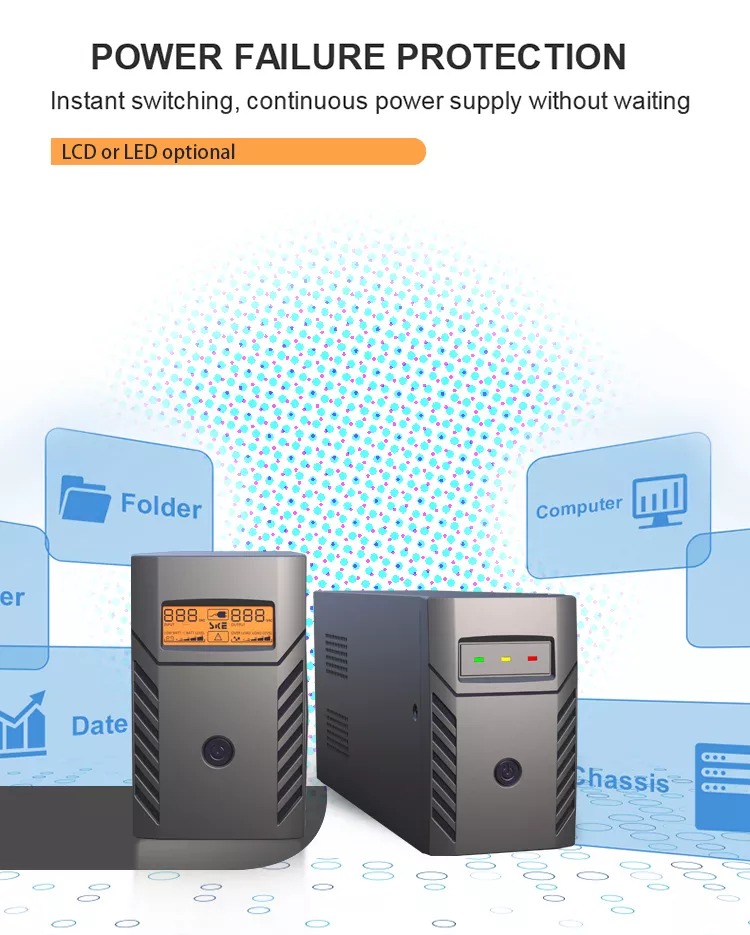

Display: LED/LCD optional
Input voltage: 110v/220v
chargecurrent: 1A
charge period: 8 hours to be full
warrenty: 12 months
Color: Black
Supply Ability
100000 Unit/Units per Month
Packaging & Delivery
Packaging Details
1. Inner: color box;
2. Outer: Standard export carton;
3. Customized package.
Port: Shenzhen
ead Time:
| Quantity(Sets) | 1 - 100 | 101 - 1000 | >1000 |
| Est. Time(days) | 16 | 20 | To be negotiated |
| MODEL | OKUPS600VA | OKUPS1000VA | OKUPS1200VA |
| CAPACITY | 600VA/360W | 1000VA/500W | 1200VA/720W |
| INPUT |
| Voltage | 220VAC |
| Voltage Range | 162-268Vac |
| Frequency Range | 50Hz±1Hz or 60Hz±1Hz (auto sensing) |
| OUTPUT |
| Voltage Regulation (Batt. Mode) | 220VAC ±10% |
| Frequency Range (Batt. Mode) | 50Hz±1Hz or 60Hz±1Hz (auto sensing) |
| Transfer Time | Typical 4-8ms, 13ms max |
| Waveform (AC. Mode) | sine wave |
| Waveform (Batt. Mode) | Simulated Sine Wave |
| BATTERY |
| Battery Voltage | 12.8V |
| Battery capacity (Lithium iron phosphate battery) | 76.8Wh | 70.4Wh | 153.8Wh |
| Backup time | 100w load ≈ 30 minutes | 100w load ≈ 27 minutes | 200w load ≈ 30 minutes |
| Maximum Charge Current | ≈ 1.0 A |
| PROTECTION |
| Full Protection | short circuit, Overload , Overcharge and overdischarge protection |
| ALARM |
| Battery mode | Sounding every 10 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding every 0.5 seconds |
| Fault | Continuously sounding |
| PHYSICAL |
| Approx. Dimension D*W*H (mm) | 306X86X140 |
| OPERATING ENVIRONMENT |
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 40dB( 1 m spacing) |
| MANAGEMENT |
| Communication port | For choice(USB&RJ45&USB charge) |
